Benchmarks — Aralez — Reverse Proxy built on Cloudflare's Pingora

Methodology and Profile

Benchmarks are performed by Oha HTTP benchmark tool.

Proxies tested: Aralez Glibc, Aralez Musl, HAProxy, Envoy, NginX, Traefik, Caddy

Load profile:

Proxy servers running on same host with different ports
4× Oha instances for parallel testing of GET/POST requests
3× Upstream servers on separate machines with sample JSON file responses
Tuned Kernel parameters for heavy load
10 Gbit network
All instances: 4 Core+HT Intel Xeon CPU E5-2699C v4 @ 2.20GHz
60 URLs (deep / nested paths), majority HTTPS (TLS termination active)
Mixed GET + POST, JSON payload for POST
4 × 1024 / 2048 / 4096 / 8192 / 16384 / 32768 concurrent connections
Upstreams on separate machines, no caching

Benchmark Results

Results shown are from 1 of 4 concurrent Oha instances. Success Rate includes all responses (2xx, 4xx, 5xx); real success rates are lower for all servers.

Raw results: GitHub
Config files: GitHub

Requests per Second Chart

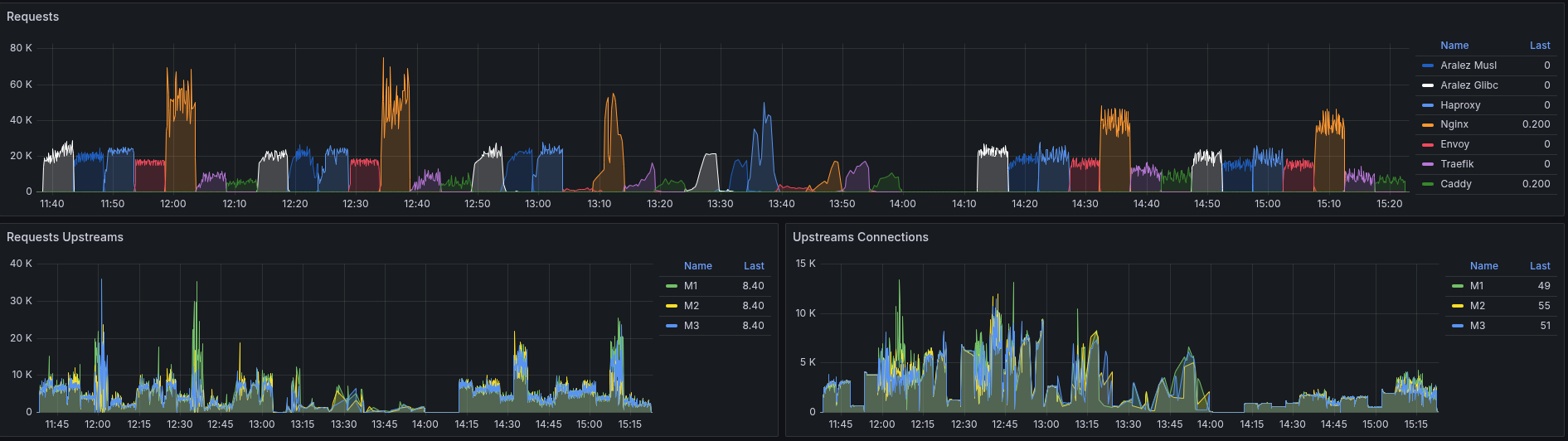

Grafana Dashboard

1024 Connections

Server	success	avg ms	avg rps	p50 (ms)	p75 (ms)	p90 (ms)	p99 (ms)	resp 2xx	resp 5xx
Aralez Glibc	100.00%	181.26	5647.36	113.43	214.51	350.34	3766.54	1693385	15
Aralez Musl	100.00%	222.25	4608.02	202.44	271.54	346.16	736.15	1381543	0
HAProxy	100.00%	194.88	5253.44	140.18	234.96	364.24	947.78	1575185	0
Envoy	100.00%	296.80	3449.66	236.70	390.55	568.72	1214.76	867123	65
Nginx	100.00%	104.77	9760.28	25.09	63.53	270.73	1004.30	2927406	14
Traefik	100.00%	340.62	3005.66	288.95	443.04	667.12	3518.50	900769	0
Caddy	100.00%	489.99	2081.51	385.36	601.50	886.57	2823.21	624070	0

2048 Connections

Server	success	avg ms	avg rps	p50 (ms)	p75 (ms)	p90 (ms)	p99 (ms)	resp 2xx	resp 5xx	timeout
Aralez Glibc	100.00%	394.26	5180.70	278.78	502.41	779.27	2122.70	1552145	382	0
Aralez Musl	99.70%	488.59	4080.99	466.45	654.94	891.07	1320.61	1218976	0	3642
HAProxy	100.00%	419.82	4878.37	389.70	490.35	616.21	1217.53	1461844	0	0
Envoy	100.00%	603.24	3395.66	527.87	778.52	1076.81	2056.96	852737	324	0
Nginx	100.00%	205.15	9925.74	37.30	242.92	483.67	1949.74	2919024	57271	0
Traefik	99.93%	972.92	2099.53	817.55	1277.94	1826.35	3537.44	627495	0	0
Caddy	99.90%	1235.62	1650.86	1110.20	1642.78	2191.51	3671.22	492795	4	0

4096 Connections

Server	success	avg ms	avg rps	p50 (ms)	p75 (ms)	p90 (ms)	p99 (ms)	resp 2xx	resp 5xx	timeout
Aralez Glibc	99.54%	714.95	5551.66	643.93	914.60	1462.53	8008.12	1653036	1470	7453
Aralez Musl	99.14%	772.00	5069.68	790.36	1002.27	1543.57	2025.12	1504373	6	12994
HAProxy	99.94%	758.26	5385.17	642.38	789.03	1049.12	2166.36	1611271	0	1021
Envoy	99.99%	1109.12	3694.40	990.68	1399.23	1898.20	6220.02	925971	744	60
Nginx	99.97%	323.50	12149.03	51.52	256.51	1010.59	3744.67	1878704	1762285	526
Traefik	98.57%	2081.61	1923.43	1719.45	2745.89	3957.28	7673.65	564861	96	8189
Caddy	94.11%	2911.85	3697.57	2911.85	3697.57	4764.45	7339.34	359695	19	22531

8192 Connections

Server	success	avg ms	avg rps	p50 (ms)	p75 (ms)	p90 (ms)	p99 (ms)	resp 2xx	resp 5xx	timeout
Aralez Glibc	96.72%	1433.87	5229.03	1172.38	1836.76	2913.85	6847.36	1510144	333	49894
Aralez Musl	93.85%	1351.05	4701.61	1005.49	1529.55	2591.60	7868.02	1310386	6474	85228
HAProxy	98.59%	1566.06	5071.51	1277.94	1581.67	2624.46	4748.58	1493989	0	21314
Envoy	99.44%	2305.49	3537.89	2024.74	2852.35	3912.80	8464.26	877059	1227	5849
Nginx	99.70%	660.06	10492.42	89.72	367.11	941.47	11447.54	1379515	1753253	4626
Traefik	91.60%	4886.61	1651.89	4051.81	6156.23	9065.90	18780.24	437343	9345	40930
Caddy	73.62%	5635.97	1489.02	5217.81	7159.80	9142.49	27277.43	296697	26342	115768

16384 Connections

Server	success	avg ms	avg rps	p50 (ms)	p75 (ms)	p90 (ms)	p99 (ms)	resp 2xx	resp 5xx	timeout
Aralez Glibc	91.82%	1889.47	7239.63	1419.06	2030.44	3545.49	8970.15	1974545	8115	175656
Aralez Musl	74.66%	1695.11	6182.74	958.54	1978.72	3421.58	6903.34	1368786	5553	466256
HAProxy	87.25%	2847.87	5214.37	2529.60	2875.75	3651.98	9037.74	1353680	0	197139
Envoy	9.55%	21293.72	1965.85	17130.98	25874.43	34067.07	176650.66	8587	30515	514554
Nginx	93.04%	1532.27	8180.35	247.81	717.42	2268.38	25872.09	748877	1523376	165484
Traefik	44.44%	4711.91	3278.25	4507.27	6075.64	7802.02	13300.41	368231	61992	537829
Caddy	31.50%	8346.07	2642.76	5980.04	8726.91	16638.25	41544.60	185650	59164	532284

32768 Connections

Server	success	avg ms	avg rps	p50 (ms)	p75 (ms)	p90 (ms)	p99 (ms)	resp 2xx	resp 5xx	timeout
Aralez Glibc	58.48%	2775.65	6321.60	261.88	738.67	5234.50	60960.45	1072450	19642	775444
Aralez Musl	60.46%	2235.21	6415.63	565.80	1043.59	1980.83	24646.15	1133334	13137	749662
HAProxy	88.52%	1924.51	12838.52	1013.03	2366.78	4008.43	14302.46	680607	2712252	431990
Envoy	14.70%	15870.07	3088.23	14057.15	21222.49	29508.97	50472.22	46855	60448	766423
Nginx	76.67%	4129.21	6839.43	716.12	2243.58	8407.53	69057.59	256932	1298022	404111
Traefik	46.33%	4702.81	5665.27	3784.63	5219.31	7536.46	25643.20	378926	395945	896315
Caddy	46.21%	5589.78	5597.03	1645.92	5798.72	15067.89	42540.05	514763	247612	887458

Comparison Charts

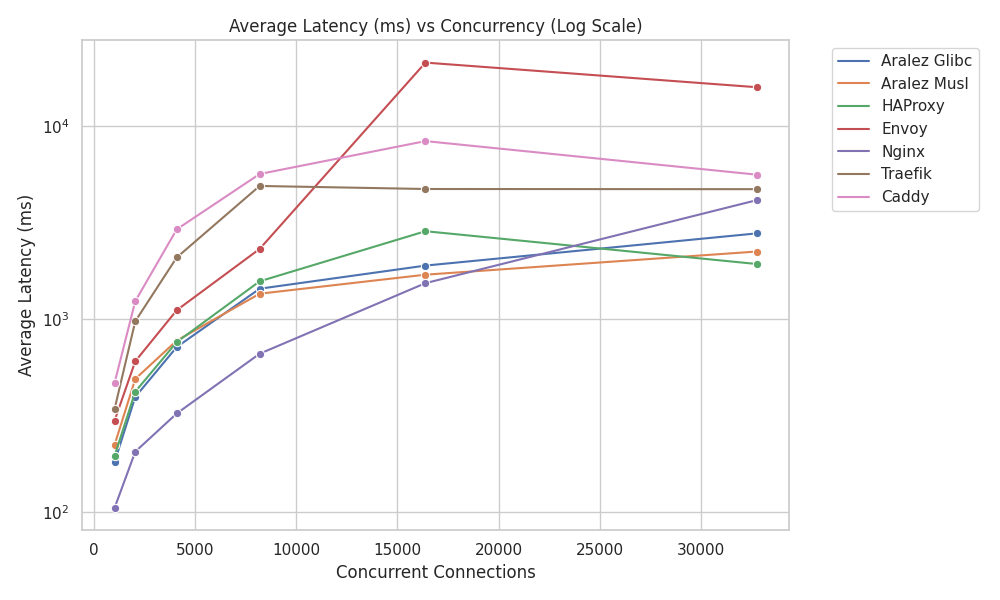

Latency Comparison

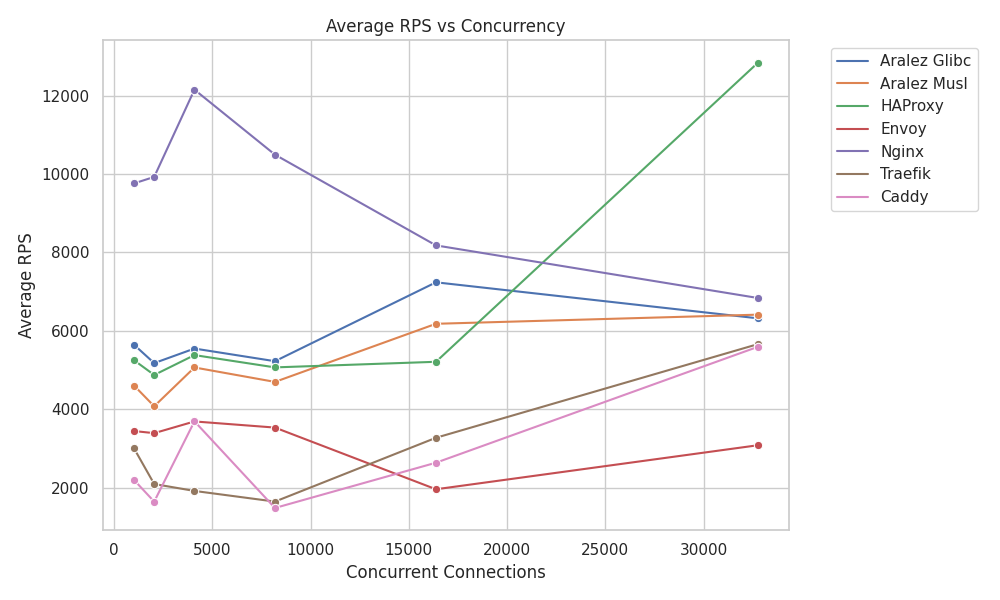

Requests per Second

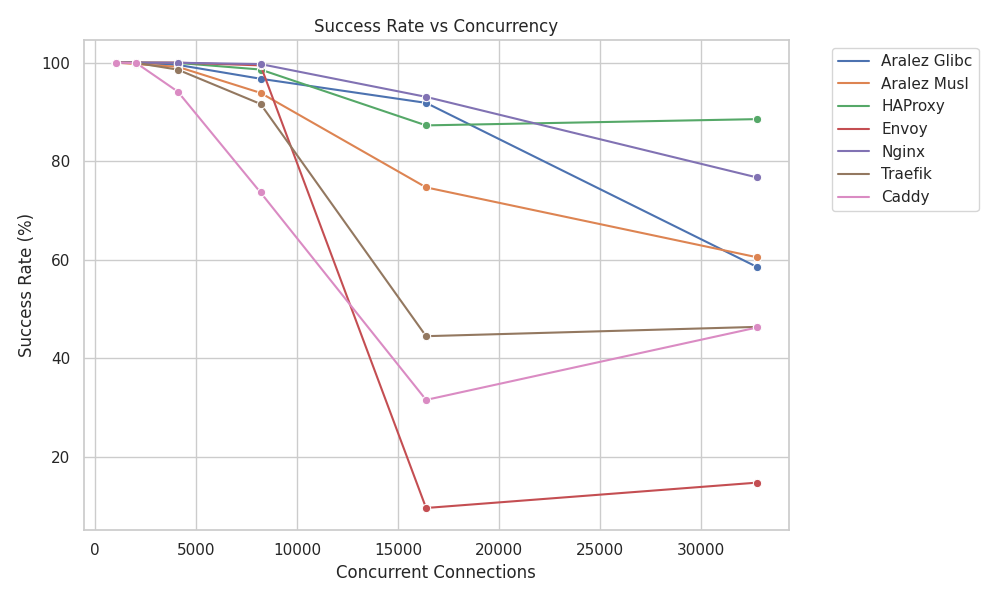

Success Rate

High-Level Summary

Aralez — Best throughput plus stability in a single measure. Stable under high load with predictable behavior.

HAProxy — Very consistent, predictable scaling. Strong under mixed workload.

NginX — Best throughput for low concurrent connections. Fails at high connection counts with many 5xx errors.

Envoy — Stable for low concurrent connections.

Traefik — Predictable behavior on low concurrent connections. Lower requests per second.

Caddy — Low requests per second ratio. Unstable under high loads, predictable on low loads.
